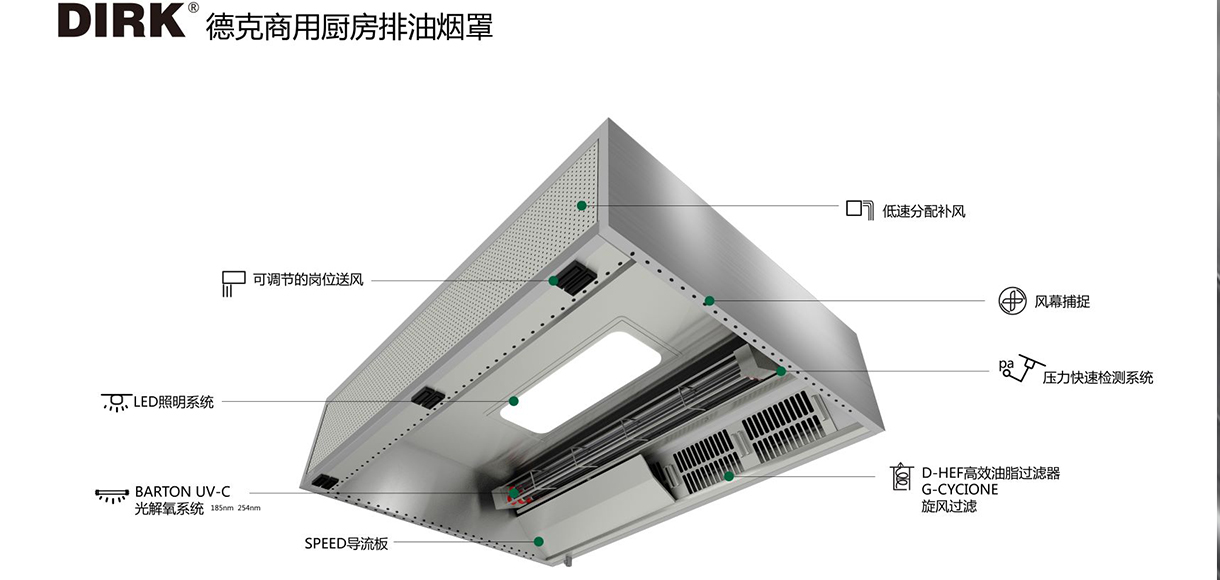

Product description

•

  01

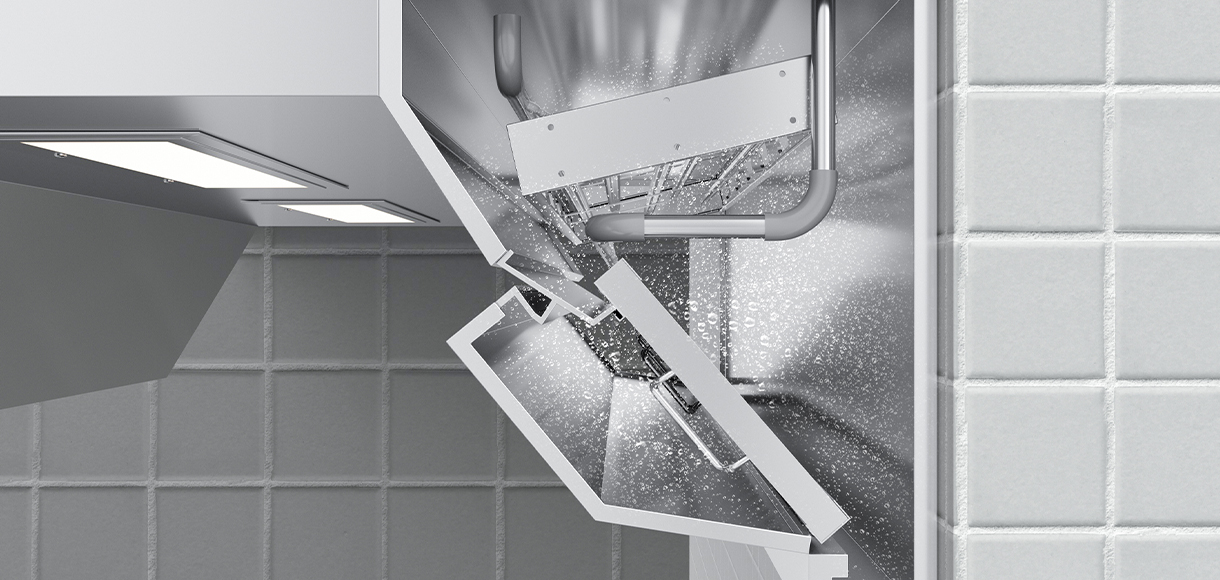

  Automatic cleaning function

  The cleaning time can be set by appointment for automatic cleaning at a fixed time. Keeping the inside of the hood clean can effectively extend the interval of manual cleaning, and reduce the cleaning workload. It also has a function of intelligent prompt to adding cleaning agent.

•

  02

  Air shield capture system

  The unique Air shield curtain capture system of DIRK hood can effectively improve the hood’s ability to capture and contain fume, and bring a magical "cubic ring suction effect" to the kitchen. Compared with traditional smoke hoods, the exhaust volume can be reduced 30%.

•

  03

  BARTON UV-C photolysis technology

  The BARTON UV-C&OZONE system cuts off the molecular chains of active double-stranded fatty substances by use of strong UV-C ultraviolet rays (254nm), making them vulnerable to be attacked; at the same time, it oxidizes alcohols, esters, aldehydes, benzene and other molecules in the smell into harmless substances such as water vapor and carbon dioxide under the ozone photolysis and oxidation action (185nm), which are finally discharged along the air duct exhaust system. The two modes of action simultaneously react to remove fume and odor in the kitchen. The original UV lamp are certified on conformity to IP-69 and has an extended service life and higher efficiency.

•

  04

  PEX high-efficiency pre grease filter

  The unique D-HEF mechanical grease filter of Dirk hood adopts a patented G-CYCLONE separation technology, which can separate grease particles of size 10μm or more with an efficiency up to 95%.

•

  05

  LED lighting system

  The high-quality LED lighting system with high luminous efficiency and high color rendering index features stable operation with low energy consumption and a high low-voltage safety factor, as well as an extended service life thanks to its good heat dissipation performance. Due to flicker-free function, it is more beneficial to health of eyesight. The brightness and illuminated area under the light shield with high light transmittance are more friendly to the chef's work. Optional sStrip light and, down light are available as options.

•

  06

  Rapid pressure detection system

  It can accurately and effectively measure the static pressure of the exhaust chamber in real time to calculate the exhaust volume.

•

  07

  Intelligent control box

  The intelligent control box is characterized by the functions of LCD touch screen control, equipment switch start and stop and plug and play. Each control box controls 10 sections of hood, and the lighting system and UV-C system of each section are individually controlled. The single UV-C lamp is featured with service time display, fault alarm and cleaning maintenance prompt; lighting system failure and replacement prompt, automatic detection function for other fault, and maintenance log record.

•

  08

  Humanized security protection

  For humanized security protection, Dirk always pays great attention to safety and equips its UV system with a triple installation protection mechanism:
  Ⅰ The UV will automatically shut down when the light barrier is removed;
  Ⅱ The UV will automatically shut down when the UV access port is opened;
  Ⅲ The UV cannot be turned on when the exhaust fan is not turned on or the air pressure detector fails to detect the exhaust air pressure
